No.

VW Part

Description

Qty

Type 3 Models

—

311 100 021 DV

Engine 45 bhp, 6 V, single carburetor

to Ch. No. 221 974

1

311-314,343,345,361-364

from Ch. No. 221 975 to 315 048 101

1

315-318, 365-368

Replace for models 343,345:

311 115 303 B by 341 115 303 A

(to Ch. No. 221 974

see Workshop Manual A—31)

—

311 100 021 JV

Engine 54bhp, 6V, twin carburetor

1

311-314,343-346,361-364

from Ch. No. 221 975 to 315 048 101

Replace for models 343-346:

311 115 303 B by 341 115 303 A

—

315 100 021 V

Engine 45bhp, single carburetor

1

315-318,365-368

from Ch. No. 315 048 102 to 316 500 000

—

315 100 021 E

Engine 45 bhp, 6 V, single carburetor

1

M 240: 315-318, 365-368

recessed crown pistons

from Ch. No. 316 000 000 to 316 500 000

—

311100 025

Engine 54 bhp, 6 V, twin carburetor

1

311-314,343-346,361-364

from Ch. No. 315 048 102 to 316 500 000

Replace for models 343-346:

311 115 303 B by 341 115 303 A

use:

from Ch. No. 315 048 102 to 315 220 883

311 721 555 G

—

311 100 025 D

Engine 54bhp, 6V, twin carburetor

1

M240:311-314,343-346,

recessed crown pistons

361-364

from Ch. No. 316 000 001 to 316 500 000

Replace for models 343-346:

311 115 303 B by 341 115303 A

—

311 100 025 L

* Engine 54 bhp, fuel injection, automatic

from Ch. No. 318 015 226 to 319 500 000

1

M 236 /M 249

from Ch. No. 319 108 900 to 319500000

1

M60 /M236/M 249

—

311 100 025 Q

Engine 54 bhp, fuel injection

from Ch. No. 318 000 001 to 319 500 000

1

M 236

from Ch. No, 319 108 900 to 319 500 000

1

M 60 /M 236

—

311 100 055 A

Engine 54bhp, twin carburetor

1

M 527

from Ch. No. 311 2000 001

—

311 100 055 B

Engine 54bhp, twin carburetor, automatic,

1

M 249 /M 527

from Ch. No. 311 2000 001

—

311 100 056

Engine 54 bhp, fuel injection

1

M 236 /M 27

from Ch. No. 312 2000 001

—

311 100 056 A

Engine 54bhp, fuel injection, automatic

1

M 236 /M 249 /M 27

from Ch. No. 312 2000 001

Illustration 1

Supplement 10

Page 1 - 3

—

311 100 056 B

*Engine 54bhp, fuel injection

1

M 236 / M26:311,313, 361,363

from Ch. No. 312 2000 001

use:

for models M 236

311 129 686/688

—

311 100 056 C

Engine 54 bhp. fuel injection, automatic

1

M 236 / M 249 / M 239

from Ch. No. 312 2000 001

use:

for models M 236 / M 249:

311 129 686/688

—

311 100 058

°Engine 54 bhp, fuel injection

1

M 236

from Ch. No. 310 2000 001 to 311 2500 000

—

311 100 058 B

*Engine 54bhp, fuel injection, automatic

1

M236 / M 249

from Ch. No. 310 2000 001 to 311 2500 000

—

311 100 061

Engine 54 bhp, twin carburetor

from Ch. No. 319 108 900 to 319 500 000

M60:311-314,361-364

from Ch. No. 317 000 001 to 311 2500 000

1

311-314,343-346,361-364

Replace for models 343-346:

from Ch. No. 317 000 001 to 317 500 000

311 115 303 B by 341 115 303 A

from Ch. No. 319 000 001 to 319 500 000

from Ch. No. 318 000 001 to 318 500 000

311 115 303 D by 341 115 303 C

use:

from Ch. No. 319 108 900 to 319 500 000

211 141 025 B

—

311 100 061 B

Engine 54 bhp, twin carburetor, automatic

from Ch. No. 319 108 900 to 319 500 000

1

M 60 / M 249

from Ch. No. 318 015 226 to 311 2500 000

1

M 249

Replace for models 343-346:

from Ch. No. 318 015 226 to 318 500 000

311 115 303 D by 341 115 303 C

from Ch. No. 319 000 001 to 319 500 000

311 115 303 B by 341 115 303 A

use:

from Ch. No. 319 108 900 to 319 500 000

211 141 025 B

—

311 100 061 C

Engine 50bhp, twin carburetor,

1

M 240:311-314,343-346,

recessed crown pistons

361-364

from Ch. No. 317 000 001 to 311 2500 000

Replace for models 343-346:

from Ch. No. 317 000 001 to 317 500 000

from Ch. No. 319 000 001 to 319 500 000

311 115 303 B by 341 115 303 A

from Ch. No. 318 000 001 to 318 500 000

311 115 303 D by 341 115 303 C

Illustration 1

Supplement 10

Page 1 - 4

—

311 100 061 M

Engine 50bhp, twin carburetor,

1

M 240:311-314, 361-364

recessed crown pistons

from Ch. No. 312 2000 001

—

315 100 061

Engine 45 bhp, single carburetor

from Ch. No. 319 108 900 to 319 500 000

1

M60:315-318, 365-368

from Ch. No. 317 000 001 to 311 2500 001

1

315-318, 365-368

use:

from Ch. No. 319 108 900 to 319 500 000

211 141 025 B

—

315 100 061 B

Engine 41 bhp, single carburetor,

1

M 240: 315-318, 365-368

recessed crown pistons

from Ch. No. 317 000 001 to 311 2500 001

—

315 100 061 G

Engine 41 bhp, single carburetor,

1

M 240: 315-318, 365-368

recessed crown pistons

from Ch. No. 312 2000 001

—

311 100 063

Engine 54bhp, twin carburetor

1

311-314, 361-364

from Ch. No. 312 2000 001

—

311 100 063 B

Engine 54 bhp, twin carburetor, automatic

1

M 249

from Ch. No. 312 2000 001

—

315 100 063

Engine 45 bhp, single carburetor

1

315-318, 365-368

from Ch. No. 312 2000 001

CRANKCASE STUDS

1

113 101 025 F

Crankcase replace;

1

stud for oil cooler by N 14451 2

to Eng. No. 65 745

use:

to Eng. No. 1 100 000

113 101 157 C, 111 198 541

to Eng. No. K 0 090 196/ N 0 000 901

to Eng. No. T 0 445 097 / P 0 001 600

311 115 107 A /141, 111 115 111 B /  131 B / 161

   (see VW Parts Service Bulletin 1-12)

(1)

311 101 025 J

Crankcase

1

M 249

(see VW Parts Service Bulletin 1-12)

2

113 101 111

Dowel pin 8 x 25

2

for crankcase jointing faces

3

113 101 112

Plug — Oil passage

1

4

113 101 112 A

Plug

1

for oil dipstick guide

(see Parts Bulletin 1-12)

5

N 16 160 2

Plug AM 10 x 1

1

Oil pressure switch bore (see Parts Bulletin 1-12)

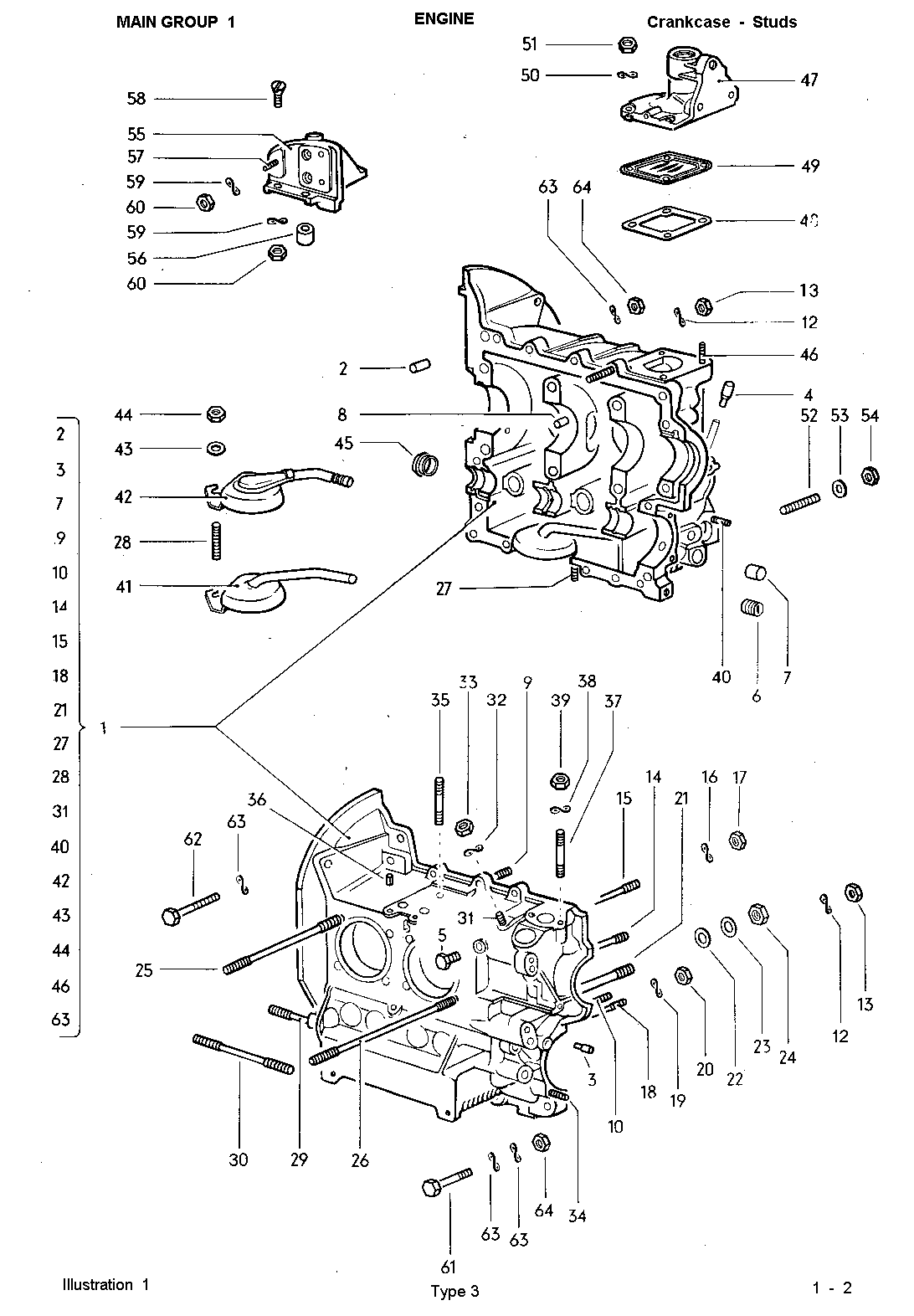

Illustration 1

Supplement 10

Page 1 — 5

6

N13 856 1

Plug, slotted M 16x 1.5

1

for oil pipe drilling

to Eng. No. K 0 150 000/M 0 003 544

to Eng. No. T 0 690 000/P 0 005 281

to Eng. No. U 0 231 100

7

113 101 122 A

Plug 19.2mm dia

1

for oil pipe drilling

from Eng. No. K 0 150 001/M 0 003 545

from Eng. No. T 0 690 001/P 0 005 282

from Eng. No. U 0 231 101/U 5 000 001

from Eng. No. X 0 000 001

8

111 101 123

Dowel pin - Crankshaft bearing

5

9

N 14 396 3

Stud AM 8 A x 50 - Crankcase

7

(9)

N 14 490 3

Stud CM10 AM 8 x 50 - Crankcase

X

10

N 14 397 9

Stud AM 8 A x 56 - Crankcase

2

(10)

N 14 491 2

Stud CM 10 AM 8 x 56 - Crankcase

X

11

N 13 830 1

Sealing washer A 8 x 14 - Stud

2

12

N 12 241 2

Spring washer B 8 x 15

9

13

N 11 008 8

Nut, hex. M 8

9

14

N 14 419 1

Stud AM 8 A x 112 - Crankcase

1

(14)

N 14 481 2

Stud CM 10 AM 8 x 112 - Crankcase

X

15

N 14 444 1

Stud AM 8 A x 125 - Crankcase

1

(15)

N 14 486 1

Stud Cm 10 A M 8 x 125 - Crankcase

X

16

N 12 241 2

Spring washer B 8 x 15

2

17

N 11 008 8

Nut, hex. M 8

2

18

N 14 399 2

Stud AM 8 A x 97 - Crankcase

1

(18)

N 14 485 1

Stud CM 10 A M 8 x 97 - Crankcase

X

19

N 12 241 2

Spring washer B 8 x 15

1

20

N 11 008 8

Nut, hex. M 8

1

(21)

N 14 500 1 `

Stud AM 12 x 1.5A x 141

6

for crankcase

to Eng. No. 31 062

(21)

N 14 563 1

Stud CM 14x1.5 A/M 12x1.5x140

X

for crankcase

to Eng. No. 31 062

21

N 14 501 1

Stud, lower AM 12 x 1.5 A x 156

for crankcase

from Eng. No 31063 to K 0 011 000

6

from Eng. No. 31063 to M 0 000 099

6

from Eng. No. T 0 000 001 to T 0 084 000

6

from Eng. No. P 0 000 001 to P 0 000 249

6

from Eng. No. K 0 01 1 001/M 0 000 100

3

from Eng. No. T 0 084 001/P 0 000 250

3

from Eng. No. U 0 000 001/U 5 000 001

3

from Eng. No. X 0 000 001

3

(21)

N 24 496 1

Stud CM 14 x 1.5 A/M 12 x 1.5 x 156

for crankcase

(21)

N 14 516 1

Stud, upper AM 12 x 1.5 A x 166

3

for crankcase

from Eng. No. K 0 011 001/M 0 000 100

from Eng. No. T 0 084 001/P 0 000 250

from Eng. No. U 0 000 001/U 5 000 001

from Eng. No. X 0 000 001

Illustration 1

Supplement 12

1 - 6

(21)

N14 571 1

Stud CM 14 x 1.5 A/M 12 x 1.5 x 166

X

for crankcase

22

113 101 125

Gasket 10 x 18

6

for crankcase jointing faces

from Eng. No. K 0 063 382/M 0 000 440

from Eng. No. T 0 315 285/P 0 001 100

from Eng. No. U 0 000 001/U 5 000 001

from Eng. No. X 0 000 001

23

113 101 129

Washer 12.2 x 22

6

24

113 101 131

Nut, hex. M 12 x 1.5

6

(24)

113 101 131 A

Sealing nut M 12 x 1.5

X

to Eng. No. K 0 063 381/M 0 000 439

to Eng. No. T 0 315 284/P 0 001 099

(25)

N 14 505 1

Stud AM 10 A x 188 - Cylinder head

to Eng. No. 672 697

8

from Eng. No. T 0 244 544/P 0 001 300

4

from Eng. No. U 0 000 001/U 5 000 001

4

from Eng. No. X 0 000 001

4

(25)

N 14 421 1

Stud AM 10 A x 223 - Cylinder head

X

to Eng. No 672 697

(see VW Parts Service Bulletin 1-12)

(25)

N 14 494 1

Stud CM 12 x 1.5 A/M 10 x 188 -

X

Cylinder head

to Eng. No. 672 697

25

N 14 502 1

Stud AM 10 A x 204 - Cylinder head

from Eng. No. 672 698 to T 0 244 543

6

311-314, 343-346, 361-364

from Eng. No. 672 698 to P 0 001 299

6

M240: 311-314, 361-364

from Eng. No. T 0 244 544 to T 0 791 126

4

from Eng. No. P 0 001 300 to P 0 006 033

4

from Eng. No. U 0 000 001 to U 0 300 000

4

from Eng. No. 672 698 to K 0 169 914

8

315-318,365-368

from Eng. No. 672 698 to M 0 004 002

8

M 240:315-318, 365-368

from Eng. No. T 0 791 127/P 0 006 033

2

from Eng. No. K 0 169 915/M 0 004 003

6

from Eng. No. U 0 300 001/U 5 000 001

2

from Eng. No. X 0 000 001

2

(25)

N 14 568 1

Stud CM 12 x 1.5 A/M 10 x 204 -

X

Cylinder head from Eng. No. 672 698

(25)

N 14 507 1

Stud AM 10 A x 208 - Cylinder head

from Eng. No. 672 698 to T 0 244 543

2

311-314, 343-346, 361-364

from Eng. No. 672 698 to P 0 001 299

2

M 240: 311-314, 361-364

from Eng. No. 672 698

2

315-318, 365-368

(25)

N 14 569 1

Stud CM 12 x 1.5 A/M 10 x 208

X

for cylinder head

Illustration 1

Supplement 12

Page 1 - 7

26

N14 506 1

Stud AM 10 A x 240 Cylinder head

to Eng. No. T 0 791 126/P 0 006 032

8

to Eng. No. K 0 169 914/M 0 004 003

8

from Eng. No. T 0 791 127/P 0 006 033

10

from Eng. No. K 0 169 915 M 0 004 004

10

from Eng. No. U 0 300 000/U 5 000 001

10

from Eng. No. X 0 000 001

10

(26)

N14 495 1

Stud CM 12 x 1.5 A M l0x 240

X

for cylinder head

27

N14 542 1

Stud AM 6 A x 21

5

for oil strainer cover

(27)

N14 478 1

Stud CM 8 A M 6 x 21

X

for oil strainer cover

28

N14 543 1

Stud AM 6 A x 33

1

for oil strainer cover and oil pipe

(28)

113 101 139

Stud M 8/M6 x 33

X

for oil strainer cover and oil pipe

29

N14 525 1

Stud AM 10 A x 85 - Engine mounting

2

(29)

N14 412 1

Stud CM 12 x 1.5 A / M l0 x 82

X

for engine mounting

30

N14 558 1

Stud AM 10A x 78

2

for Engine mounting

(see VW Ports Service Bulletin 1-12)

31

N14 398 3

Stud AM 8 A x 27

1

for distributor

(31)

N14 482 1

Stud CM 10 A/M x 27

X

for distributor

32

N12 2412

Spring washer B 8 x 15

1

33

N11 008 8

Nut, hex. M 8

1

(34)

N14 401 3

Stud AM 6 A x 31 - Oil pump

4

to Eng. No. K 0 090 194 / M 0 000 899

to Eng. No. T 0 445 096 P 0 001 598

34

Nl4 395 3

Stud AM 8 A x 42 - Oil pump

4

from Eng. No. K 0 090 195/ M 0 000 900

from Eng. No. T 0 445 097 / P 0 001 600

from Eng. No. U 0000 001 / U 5 000 001

from Eng. No. X 0 000 001

(34)

N14 402 1

Stud CM 8 A/M 6 x 31 - Oil pump

X

to Eng. No. K 0 090 194 / M 0 000 899

to Eng. No. T 0 445 096 P 0 001 599

Illustration 1

Supplement 10

Page 1 - 8

(35)

N 14 451 2

Stud AM6Ax23

for oil cooler bracket

to Eng. No. 65 745

(35)

N 14 452 1

Stud CM 8 A/M 6 x 23

X

for oil cooler bracket

35

N 14 539 1

Stud AM 6A x 56— Oil cooler

1

from Eng. No. 65 746

(35)

N 14565 1

Stud CM 8A M6 x 56

X

for Oil cooler

(see VW Parts Service Bulletin 1-12)

36

113 101 145 A

Bush — Oil cooler mounting

2

(see VW Parts Service Bulletin 1-12)

37

N14 396 3

Stud AM 8 A x 50

2

for fuel pump

(37)

N 14 566 1

Stud CM 10 A M 8 x 51

X

for fuel pump

38

N 12 241 2

Spring washer B 8 x 15

2

39

N1l 008 8

Nut, hex. M8

2

40

N14 532 2

Stud AM 8 A x 32

2

for oil filler pipe

(40)

N 14 561 2

Stud CM l0 A M 8 x 30

X

for oil filler pipe

41

311 101 149 A

Oil pipe with dome

1

to Eng. -No K 0 150 000 M 0 003 544

to Eng. -No. T 0 690 000/P 0 005 281

to Eng. - No. U 0 231 000

42

111 101 149 A

Oil pipe with dome

1

from Eng. -No. K 0 150 001 / M 0 003 545

from Eng. -No. T 0 690 001 / P 0 005 282

from Eng. -No. U 0 231 001 / U 5 000 001

from Eng. -No. X 0 000 001

43

N 11 524 4

Washer A 6. 4

1

44

113 101 175

Nut, hex. M 6 (self-locking)

1

(45)

113 101 157

End plug 27.4mm dia. — Camshaft

1

to Eng. No. 1100000

45

113 101 157 C

End plug 29.9mm dia. — Camshaft

1

from Eng.-No. K 0000001 / M 0 000 001

from Eng. -No. T 0 000 001 / P 0 000001

from Eng. -No. U 0 000 001 U 5 000 001

from Eng. -No. X 0 000 001

46

N 14 443 4

Stud AM 8A x 38

4

for breather support

(46)

N 14 183 1

Stud CM 10 A M 8 x 38

X

for breather support

47

311 101 161 A

Breather support

1

48

*113 101 219

Gasket - Breather support

1

Illustration 1

Supplement 10

Page 1 - 9

49

113 101 221 B

Oil deflector plate

1

from Eng. -No. K 0 120 745/M 0 002 445

from Eng. -No. T 0 616 933/P 0 004 677

from Eng.-No. U0 154029/U 5000 001

from Eng.-No. X0000 001

50

N12 241 2

Spring washer B 8 x 15

4

51

N11 008 8

Nut, hex. M8

4

52

N14 532 2

Stud AM 8 A x 32 — Thermostat bracket

1

(52)

N14 561 2

Stud CM 10 A/M 8 x 30

X

for thermostat bracket

53

N11 654 2

Washer 9.5

1

54

N11 008 8

Nut, hex. M 8

1

55

311 101 171

Bracket — Oil cooler

1

to Eng. No. 65 745

56

111 117 151

Seal — Bracket

2

to Eng. No. 65 745

57

N14 451 2

Stud AM 6 A x 23 — Oil cooler

1

to Eng. No. 65 745

(57)

N14 452 1

Stud CM 8 A/M 6 x 23 - Oil cooler

X

58

N11 758 1

Screw, csk. hd. AM 6x 22

2

to Eng. No. 65 745

59

N12 226 2

Spring washer B 6

3

to Eng. No. 65 745

60

N11 006 2

Nut, hex. M6

3

to Eng. No. 65 745

CRANKCASE  SECURING PARTS

61

N 10 350 3

Bolt, hex. hd. BM 8 x 50

2

62

N 10 352 2

Bolt, hex. hd. BM 8 x 55

1

63

N 12 241 2

Spring washer B 8 x 15

6

64

N 11 008 8

Nut, hex. M8

3

Illustration 1

Supplement 10

Page 1 — 9a
